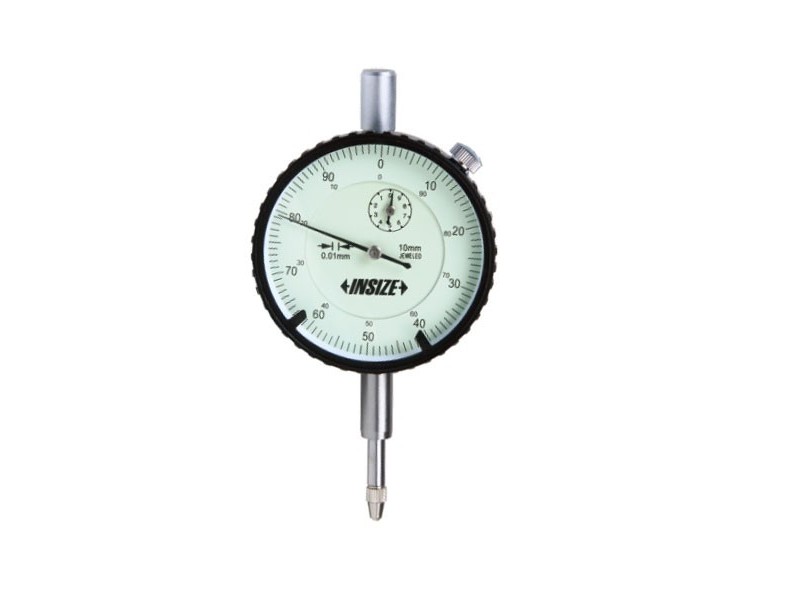

Insize 2308-10A dial indicator

Insize 2308-10A Dial Indicator – Economic Standard Type

The Insize 2308-10A is a reliable, cost-effective dial indicator designed for standard precision measurement tasks.

Featuring a 10 mm measuring range with 0.01 mm graduation, it includes a jeweled bearing for smooth operation.

The satin chrome-plated steel body ensures durability, while the lug back design and bezel clamp offer secure mounting and easy adjustment.

Supplied with limit pointers for tolerance setting, it meets DIN 878 standards—making it ideal for workshops, inspection stations, and general engineering use

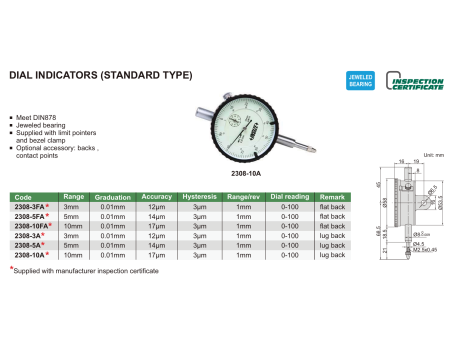

Specifications:

• Type: Economic standard dial indicator
• Measuring Range: 10 mm
• Graduation: 0.01 mm
• Accuracy: ±17 µm
• Hysteresis: 3 µm
• Range per Revolution: 1 mm
• Dial Reading: 0–100

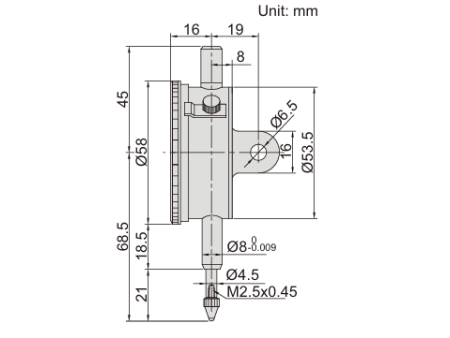

• Bezel Diameter: 58 mm
• Mounting Style: Lug back
• Stem Diameter: 8 mm
• Contact Point Thread: M2.5 × 0.45
• Bearing Type: Jeweled bearing for smooth movement
• Body Finish: Satin chrome-plated steel
• Supplied with inspection certificate

  Included Features:

  • Limit pointers for tolerance setting
  • Bezel clamp for easy adjustment
