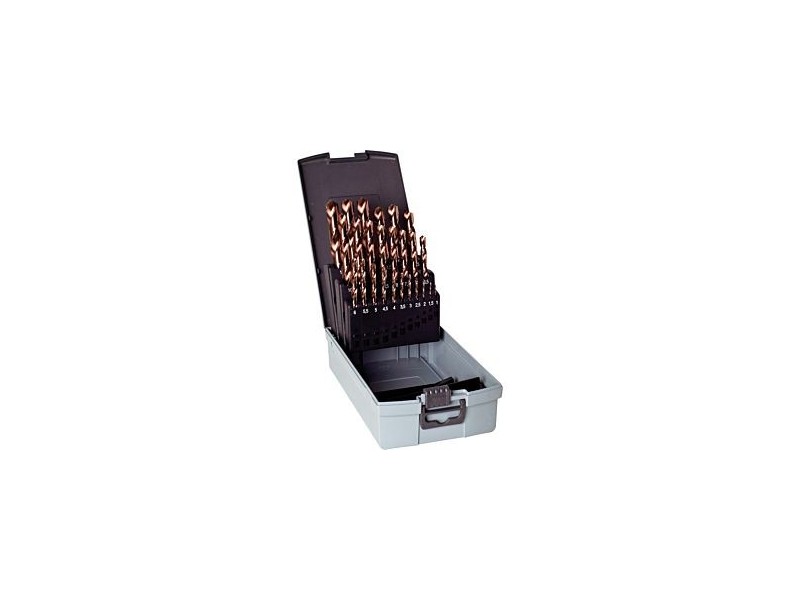

Drill set with V16 drills

€260.00

The V16 Twist Drill Set features premium HSS-Co8/ M42 drills and a bronze-VAP surface for enhanced durability and heat resistance.

Designed for professional use, it includes optimized split points and a 135° cutting angle, making it ideal for drilling tough materials like stainless steel, cast iron, and titanium alloys whether on-site or in the workshop.

Quantity
Last items in stock

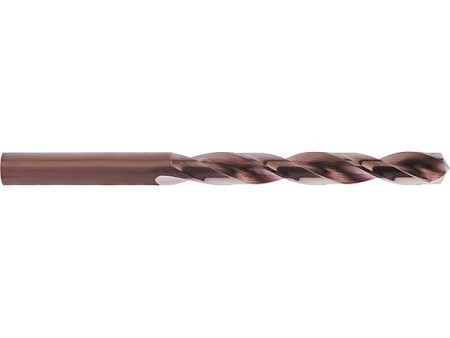

Stock V16 Twist Drill Set Ø1.0-13.00 x 0.5mm – HSS-Co M42

Engineered for precision and durability, the V16 drill set features 8% cobalt-alloyed high-speed steel (HSCO) with a violet tempered surface finish.

Designed for both stationary and mobile applications, it offers optimized split points and a 135° cutting angle for efficient drilling in steel, stainless steel, cast iron, non-ferrous metals, and titanium alloys.

Ideal for professional fitters drilling with demanding materials.

V16 Twist Drill Set – Technical Specifications

  • Material: Premium M42/HSS-Co8 steel
  • Diameter Range: Ø 1.0–13.0 mm in 0.5 mm increments
  • Tolerance: h8
  • Standard: DIN 338
  • Surface Finish: Violet tempered (bronze-VAP)
  • Type: V16
  • Cutting Direction: Right-hand
  • Point Geometry: Relieved cone with 135° cutting angle
  • Web Thinning: ≥ Ø 1.000 mm
  • Point Design: Optimised split point for reduced feed force
  • Performance:
    • High thermal resistance and hardness
    • Maximum tool life even under demanding conditions
    • Suitable for both stationary and mobile drilling applications

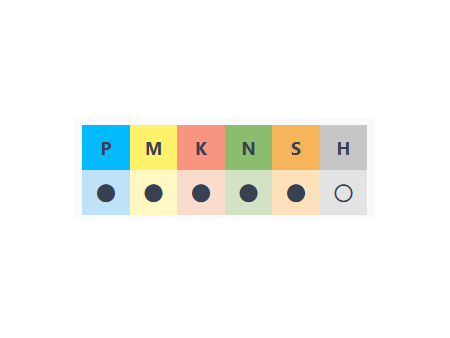

  • Applications: Ideal for steel, stainless steel, cast iron, non-ferrous metals, and titanium alloys
